REDUCED TEE SDR11 PE100-RC

Home
/
Products
/
METRIC-SIZED PRODUCTS
/
EF FITTINGS
/
REDUCED TEE SDR11 PE100-RC

METRIC-SIZED PRODUCTS

EF FITTINGS

GAS: 10 BAR WATER: 16 BAR

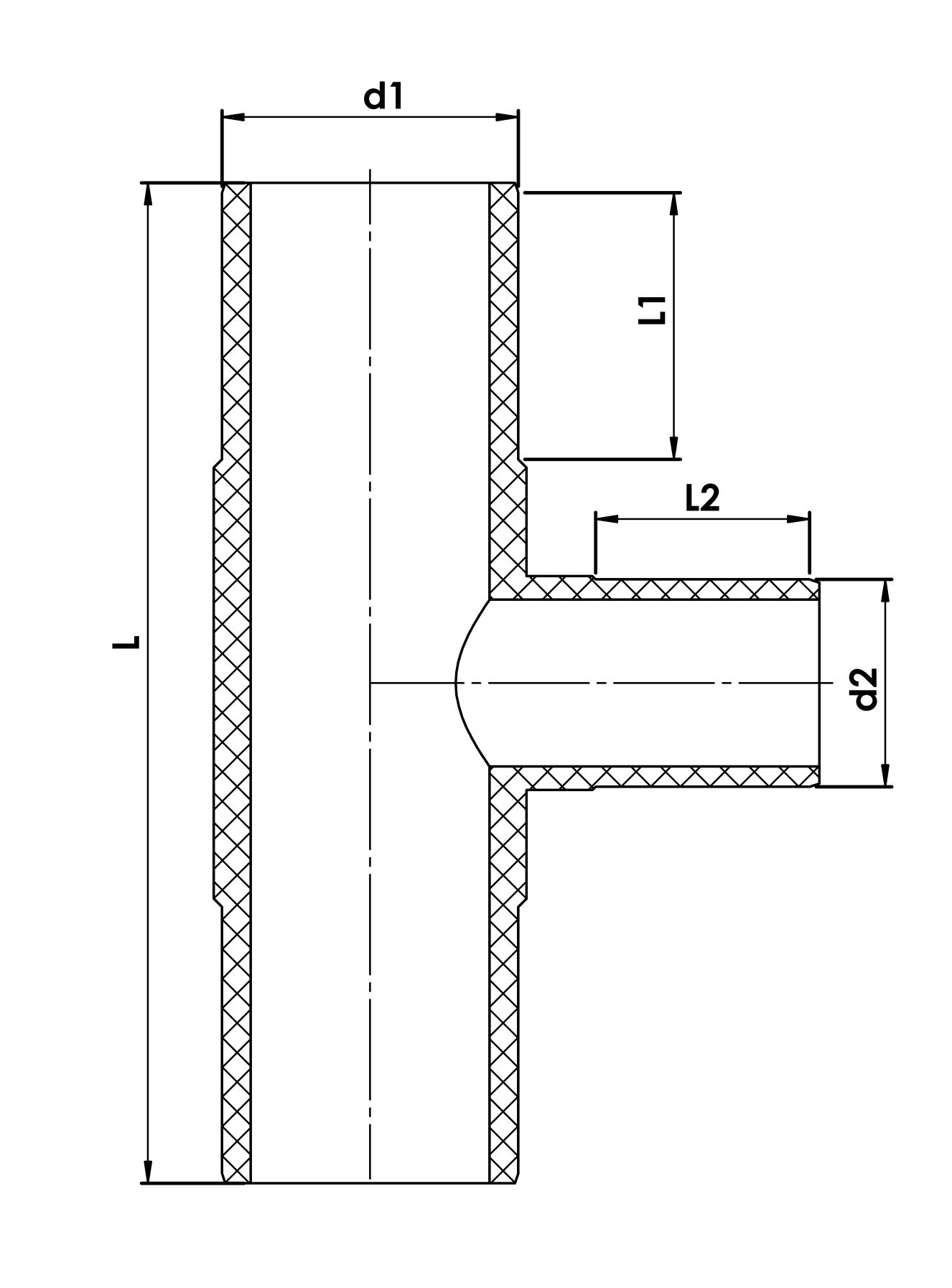

d1*d2 CODE Kg. L(mm) L1(mm) L2 (mm) box sizes nos/box
50*32 03311110000000500032 0,20 190 60 65 40*30*30 30
50*40 03311110000000500040 0,20 196 60 60 40*30*30 30
63*32 03311110000000630032 0,33 220 64 75 40*30*30 20
63*40 03311110000000630040 0,34 220 64 58 40*30*30 20
63*50 03311110000000630050 0,35 220 64 62 40*30*30 16
75*32 03311110000000750032 0,90 277 76 60 60*40*30 16
75*40 03311110000000750040 0,92 277 79 60 60*40*30 16
75*63 03311110000000750063 0,95 277 77 85 60*40*30 16
90*50 03311110000000900050 0,90 305 85 85 60*40*30 15
90*63 03311110000000900063 0,90 305 85 85 60*40*30 15
90*75 03311110000000900075 0,90 305 85 85 60*40*30 15
110*32 03311110000001100032 1,40 340 95 80 60*40*45 12
110*50 03311110000001100050 1,45 340 95 85 60*40*45 12
110*63 03311110000001100063 1,45 340 95 65 60*40*45 12
110*90 03311110000001100090 1,52 340 95 75 60*40*45 12
125*90 03311110000001250090 1,92 360 95 85 60*40*45 9
125*110 03311110000001250110 2,07 360 95 90 60*40*45 9
140*90 03311110000001400090 2,68 400 100 95 60*40*30 4
140*110 03311110000001400110 2,79 400 100 100 60*40*30 4
140*125 03311110000001400125 3,20 400 120 90 60*40*30 4
160*90 03311110000001600090 4,45 560 150 90 60*40*45 5
160*110 03311110000001600110 4,60 560 150 95 60*40*45 5
160*125 03311110000001600125 4,65 560 150 95 60*40*45 5
160*140 03311110000001600140 5,00 560 100 140 60*40*45 5
180*90 03311110000001800090 6,00 560 145 90 60*40*30 2
180*110 03311110000001800110 6,00 560 145 80 60*40*30 2
180*125 03311110000001800125 6,20 560 145 90 60*40*30 2
180*140 03311110000001800140 5,82 430 105 140 60*40*30 2
180*160 03311110000001800160 7,60 470 105 150 60*40*30 2 *
200*90 03311110000002000090 6,10 500 120 90 60*40*45 3 *
200*110 03311110000002000110 6,20 500 120 90 60*40*45 3 *
200*125 03311110000002000125 6,60 430 115 125 60*40*45 3 *
200*140 03311110000002000140 7,00 470 140 110 60*40*45 3 *
200*160 03311110000002000160 7,30 490 140 140 60*40*45 3 *
200*180 03311110000002000180 9,00 485 115 150 60*40*45 3 *
225*90 03311110000002250090 8,20 540 130 85 60*40*45 2 *
225*110 03311110000002250110 8,45 540 130 90 60*40*45 2 *
225*125 03311110000002250125 8,60 540 130 95 60*40*45 2 *
225*140 03311110000002250140 8,30 460 120 110 60*40*45 2 *
225*160 03311110000002250160 8,80 540 130 110 60*40*45 2 *
225*180 03311110000002250180 9,00 540 130 115 60*40*45 2 *
225*200 03311110000002250200 11,80 560 120 130 60*40*45 2 *
250*90 03311110000002500090 7,89 450 155 90 60*40*30 1 *
250*110 03311110000002500110 8,50 460 155 110 60*40*30 1 *
250*125 03311110000002500125 9,70 470 130 125 60*40*30 1 *
250*140 03311110000002500140 10,00 485 130 140 60*40*30 1 *
250*160 03311110000002500160 10,79 530 160 140 60*40*30 1 *
250*180 03311110000002500180 12,50 525 130 150 60*40*45 1 *
250*200 03311110000002500200 14,80 610 145 130 60*40*45 1 *
250*225 03311110000002500225 16,62 575 130 170 60*40*45 1 *
280*90 03311110000002800090 10,00 440 140 80 *** *
280*110 03311110000002800110 11,95 490 140 110 *** *
280*125 03311110000002800125 12,00 490 140 90 *** *
280*140 03311110000002800140 12,50 505 140 110 *** *
280*160 03311110000002800160 14,70 545 140 140 *** *
280*180 03311110000002800180 15,00 545 140 150 *** *
280*200 03311110000002800200 16,60 595 140 130 *** *
280*225 03311110000002800225 16,40 595 140 150 *** *
280*250 03311110000002800250 19,80 635 140 145 *** *
315*90 03311110000003150090 13,00 465 150 90 *** *
315*110 03311110000003150110 15,10 510 150 110 *** *
315*125 03311110000003150125 15,20 510 150 90 *** *
315*140 03311110000003150140 15,70 525 150 110 *** *
315*160 03311110000003150160 18,20 565 150 140 *** *
315*180 03311110000003150180 18,60 570 150 150 *** *
315*200 03311110000003150200 20,30 615 150 130 *** *
315*225 03311110000003150225 20,10 615 150 150 *** *
315*250 03311110000003150250 23,70 655 150 145 *** **
355*90 03311110000003550090 17,20 495 165 90 *** **
355*110 03311110000003550110 19,60 540 165 110 *** **
355*125 03311110000003550125 19,70 540 165 90 *** **
355*140 03311110000003550140 20,30 555 165 110 *** **
355*160 03311110000003550160 23,00 595 165 140 *** **
355*180 03311110000003550180 23,30 595 165 150 *** **
355*200 03311110000003550200 25,50 645 165 130 *** **
355*225 03311110000003550225 25,30 645 165 150 *** **
355*250 03311110000003550250 29,20 685 165 145 *** **
400*110 03311110000004000110 25,60 570 180 110 *** **
400*125 03311110000004000125 25,70 570 180 90 *** **
400*140 03311110000004000140 26,40 585 180 110 *** **
400*160 03311110000004000160 29,50 625 180 140 *** **
400*180 03311110000004000180 29,80 625 180 150 *** **
400*200 03311110000004000200 32,50 675 180 130 *** **
400*225 03311110000004000225 32,30 675 180 150 *** **
400*250 03311110000004000250 36,50 715 180 145 *** **
450*90 03311110000004500090 30,10 555 195 90 *** **
450*110 03311110000004500110 33,40 600 195 110 *** **
450*125 03311110000004500125 33,50 600 195 90 *** **
450*140 03311110000004500140 34,40 615 195 110 *** **
450*160 03311110000004500160 38,00 655 195 140 *** **
450*180 03311110000004500180 38,20 655 195 150 *** **
450*200 03311110000004500200 41,40 705 195 130 *** **
450*225 03311110000004500225 41,20 705 195 150 *** **
450*250 03311110000004500250 46,00 745 195 145 *** **
500*90 03311110000005000090 39,60 595 215 90 *** **
500*110 03311110000005000110 43,40 640 215 110 *** **
500*125 03311110000005000125 43,60 640 215 90 *** **
500*140 03311110000005000140 44,60 655 215 110 *** **
500*160 03311110000005000160 48,70 695 215 140 *** **
500*180 03311110000005000180 49,00 695 215 150 *** **
500*200 03311110000005000200 52,80 745 215 130 *** **
500*225 03311110000005000225 52,60 745 215 150 *** **
500*250 03311110000005000250 58,00 785 215 145 *** **
560*90 03311110000005600090 52,70 635 235 90 *** **
560*110 03311110000005600110 57,30 680 235 110 *** **
560*125 03311110000005600125 57,40 680 235 90 *** **
560*140 03311110000005600140 58,80 695 235 110 *** **
560*160 03311110000005600160 63,50 735 235 140 *** **
560*180 03311110000005600180 63,80 735 235 150 *** **
560*200 03311110000005600200 68,40 785 235 130 *** **
560*225 03311110000005600225 68,20 785 235 150 *** **
560*250 03311110000005600250 74,00 825 235 145 *** **
630*90 03311110000006300090 70,00 675 255 90 *** **
630*110 03311110000006300110 75,40 720 255 110 *** **
630*125 03311110000006300125 75,50 720 255 90 *** **
630*140 03311110000006300140 77,20 735 255 110 *** **
630*160 03311110000006300160 82,70 775 255 140 *** **
630*180 03311110000006300180 83,00 775 255 150 *** **
630*200 03311110000006300200 88,70 825 255 130 *** **
630*225 03311110000006300225 88,50 825 255 150 *** **
630*250 03311110000006300250 95,00 865 255 145 *** **



Büyük çaplar isteğe bağlı olarak üretilmektedir/ Bigger sizes are available upon request.

(*) : Enjeksiyon baskı / Injected

(**) : EF semer kullanılarak üretilmektedir. / Produced by EF saddle

(***) : Karton kutu kullanılmaz. Sadece Euro paletler kullanılmaktadır. / No box is used. (Only Euro pallets are being used.)
