REDUCED TEE SDR17 PE100-RC

Home
/
Products
/
METRIC-SIZED PRODUCTS
/
EF FITTINGS
/
REDUCED TEE SDR17 PE100-RC

METRIC-SIZED PRODUCTS

EF FITTINGS

GAS: 6 BAR WATER: 10 BAR

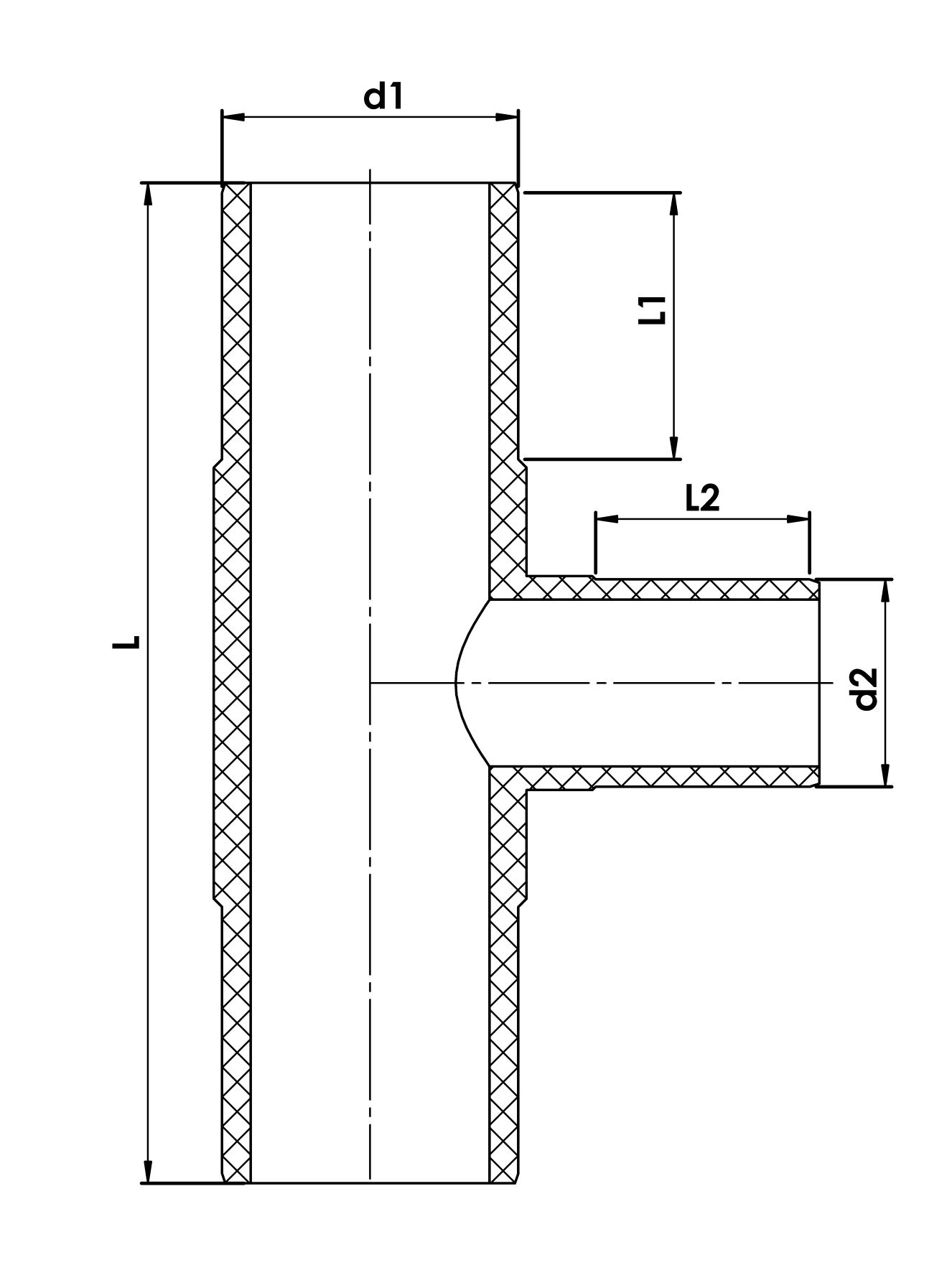

d1*d2 CODE Kg. L (mm) L1 (mm) L2(mm) box sizes nos/box
110*63 03311710000001100063 1,23 340 95 65 60*40*45 12
110*90 03311710000001100090 1,30 340 95 75 60*40*45 12
125*90 03311710000001250090 1,60 360 95 85 60*40*45 9
125*110 03311710000001250110 1,75 360 95 90 60*40*45 9
140*90 03311710000001400090 2,25 400 100 95 60*40*30 4
140*110 03311710000001400110 2,00 400 100 100 60*40*30 4
140*125 03311710000001400125 2,45 400 120 90 60*40*30 4
160*90 03311710000001600090 3,75 560 150 90 60*40*45 5
160*110 03311710000001600110 3,60 560 150 95 60*40*45 5
160*125 03311710000001600125 3,95 560 150 95 60*40*45 5
160*140 03311710000001600140 3,60 415 100 110 60*40*45 5
180*90 03311710000001800090 5,00 560 145 90 60*40*45 4
180*110 03311710000001800110 5,00 560 145 80 60*40*45 4
180*125 03311710000001800125 5,30 560 145 90 60*40*45 4
180*140 03311710000001800140 4,10 430 105 110 60*40*45 4
180*160 03311710000001800160 5,80 470 105 140 60*40*45 4
200*90 03311710000002000090 4,58 500 120 90 60*40*45 3
200*110 03311710000002000110 4,65 500 120 90 60*40*45 3
200*125 03311710000002000125 5,10 430 115 90 60*40*30 2
200*140 03311710000002000140 5,95 470 140 110 60*40*30 2
200*160 03311710000002000160 5,40 515 140 140 60*40*45 3
200*180 03311710000002000180 7,40 485 115 140 60*40*30 2
225*90 03311710000002250090 6,95 540 130 85 60*40*45 2
225*110 03311710000002250110 7,18 540 130 90 60*40*45 2
225*125 03311710000002250125 7,30 540 130 95 60*40*45 2
225*140 03311710000002250140 6,30 460 120 110 60*40*45 2
225*160 03311710000002250160 7,45 540 130 110 60*40*45 2
225*180 03311710000002250180 7,65 530 130 115 60*40*45 2
250*90 03311710000002500090 10,00 600 140 100 60*40*30 1
250*110 03311710000002500110 5,78 460 155 110 60*40*30 1
250*125 03311710000002500125 7,30 470 130 90 60*40*30 1
250*140 03311710000002500140 10,40 510 140 110 60*40*30 1
250*160 03311710000002500160 9,40 520 130 140 60*40*30 1 *
250*180 03311710000002500180 9,70 525 130 150 60*40*45 1 *
250*200 03311710000002500200 10,80 600 140 130 60*40*45 1 *
250*225 03311710000002500225 10,60 575 130 150 60*40*45 1 *
280*63 03311710000002800063 5,90 430 140 85 60*40*45 1 **
280*90 03311710000002800090 7,10 440 140 90 60*40*30 1 **
280*110 03311710000002800110 8,80 490 140 110 60*40*30 1 **
280*125 03311710000002800125 8,90 490 140 90 60*40*30 1 **
280*140 03311710000002800140 9,20 505 140 110 60*60*33 1 **
280*160 03311710000002800160 11,20 545 140 140 *** **
280*180 03311710000002800180 11,40 545 140 150 *** **
280*200 03311710000002800200 12,70 595 140 130 *** **
280*225 03311710000002800225 12,50 595 140 150 *** **
315*90 03311710000003150090 9,20 465 150 90 *** **
315*110 03311710000003150110 10,90 510 150 110 *** **
315*125 03311710000003150125 11,00 510 150 90 *** **
315*140 03311710000003150140 15,50 525 150 110 *** **
315*160 03311710000003150160 13,50 565 150 140 *** **
315*180 03311710000003150180 13,90 570 150 150 *** **
315*200 03311710000003150200 14,80 615 150 130 *** **
315*225 03311710000003150225 15,00 615 150 150 *** **
315*250 03311710000003150250 18,30 655 150 145 *** **
315*280 03311710000003150280 20,60 740 150 185 *** **
355*90 03311710000003550090 12,00 495 165 90 *** **
355*110 03311710000003550110 14,00 540 165 110 *** **
355*125 03311710000003550125 14,10 540 165 90 *** **
355*140 03311710000003550140 14,50 555 165 110 *** **
355*160 03311710000003550160 16,90 595 165 140 *** **
355*180 03311710000003550180 17,10 595 165 150 *** **
355*200 03311710000003550200 18,80 645 165 130 *** **
355*225 03311710000003550225 18,60 645 165 150 *** **
355*250 03311710000003550250 22,10 685 165 145 *** **
355*280 03311710000003550280 24,80 770 165 185 *** **
355*315 03311710000003550315 46,70 820 165 165 *** **
400*90 03311710000004000090 15,80 525 180 90 *** **
400*110 03311710000004000110 18,00 570 180 110 *** **
400*125 03311710000004000125 18,10 570 180 90 *** **
400*140 03311710000004000140 18,60 585 180 110 *** **
400*160 03311710000004000160 21,20 625 180 140 *** **
400*180 03311710000004000180 21,50 625 180 150 *** **
400*200 03311710000004000200 23,50 675 180 130 *** **
400*225 03311710000004000225 23,30 675 180 150 *** **
400*250 03311710000004000250 27,00 715 180 145 *** **
400*280 03311710000004000280 30,20 800 180 185 *** **
400*315 03311710000004000315 52,40 850 180 165 *** **
400*355 03311710000004000355 54,80 850 180 165 *** **
450*90 03311710000004500090 20,80 555 195 90 *** **
450*110 03311710000004500110 23,40 600 195 110 *** **
450*125 03311710000004500125 23,50 600 195 90 *** **
450*140 03311710000004500140 24,10 615 195 110 *** **
450*160 03311710000004500160 27,00 655 195 140 *** **
450*180 03311710000004500180 27,20 655 195 150 *** **
450*200 03311710000004500200 29,60 705 195 130 *** **
450*225 03311710000004500225 29,40 705 195 150 *** **
450*250 03311710000004500250 33,40 745 195 145 *** **
450*280 03311710000004500280 37,20 830 195 185 *** **
450*315 03311710000004500315 59,80 880 195 165 *** **
450*355 03311710000004500355 64,60 880 195 165 *** **
450*400 03311710000004500400 64,60 880 195 190 *** **
500*90 03311710000005000090 27,20 595 215 90 *** **
500*110 03311710000005000110 30,10 640 215 110 *** **
500*125 03311710000005000125 30,20 640 215 90 *** **
500*140 03311710000005000140 31,00 655 215 110 *** **
500*160 03311710000005000160 34,20 695 215 140 *** **
500*180 03311710000005000180 34,50 695 215 150 *** **
500*200 03311710000005000200 37,30 745 215 130 *** **
500*225 03311710000005000225 37,10 745 215 150 *** **
500*250 03311710000005000250 41,40 785 215 145 *** **
500*280 03311710000005000280 46,00 870 215 185 *** **
500*315 03311710000005000315 66,80 920 215 165 *** **
500*355 03311710000005000355 69,80 920 215 165 *** **
500*400 03311710000005000400 72,80 920 215 190 *** **
500*450 03311710000005000450 67,80 920 215 210 *** **
560*90 03311710000005600090 36,00 635 235 90 *** **
560*110 03311710000005600110 39,40 680 235 110 *** **
560*125 03311710000005600125 39,50 680 235 90 *** **
560*140 03311710000005600140 40,50 695 235 110 *** **
560*160 03311710000005600160 44,10 735 235 140 *** **
560*180 03311710000005600180 44,40 735 235 150 *** **
560*200 03311710000005600200 47,70 785 235 130 *** **
560*225 03311710000005600225 47,50 785 235 150 *** **
560*250 03311710000005600250 52,30 825 235 145 *** **
560*280 03311710000005600280 57,80 910 235 188 *** **
560*315 03311710000005600315 81,30 960 235 165 *** **
560*355 03311710000005600355 83,70 960 235 165 *** **
560*400 03311710000005600400 86,70 960 235 190 *** **
560*450 03311710000005600450 81,70 960 235 210 *** **
560*500 03311710000005600500 145,00 1180 235 230 *** **
630*90 03311710000006300090 48,10 675 255 90 *** **
630*110 03311710000006300110 52,20 720 255 110 *** **
630*125 03311710000006300125 52,30 720 255 90 *** **
630*140 03311710000006300140 53,50 735 255 110 *** **
630*160 03311710000006300160 57,70 775 255 140 *** **
630*180 03311710000006300180 58,00 775 255 150 *** **
630*200 03311710000006300200 62,00 825 255 130 *** **
630*225 03311710000006300225 61,80 825 255 150 *** **
630*250 03311710000006300250 67,20 865 255 145 *** **
630*280 03311710000006300280 73,90 950 255 185 *** **
630*315 03311710000006300315 98,20 1000 255 165 *** **
630*355 03311710000006300355 101,50 1000 255 165 *** **
630*400 03311710000006300400 104,50 1000 255 190 *** **
630*450 03311710000006300450 99,50 1000 255 210 *** **
630*500 03311710000006300500 166,30 1220 255 230 *** **
630*560 03311710000006300560 158,00 1220 255 250 *** **



Büyük çaplar isteğe bağlı olarak üretilmektedir/ Bigger sizes are available upon request.

(*) : Enjeksiyon baskı / Injected

(**) : EF semer kullanılarak üretilmektedir. / Produced by EF saddle

(***) : Karton kutu kullanılmaz.Sadece Euro paletler kullanılmaktadır. / No box is used. (Only Euro pallets are being used
