FLANŞ ADAPTÖRÜ SDR17 PE100-RC
METRİK ÖLÇÜLÜ ÜRÜNLER
EF ÜRÜNLER
GAZ: 6 BAR SU: 10 BAR

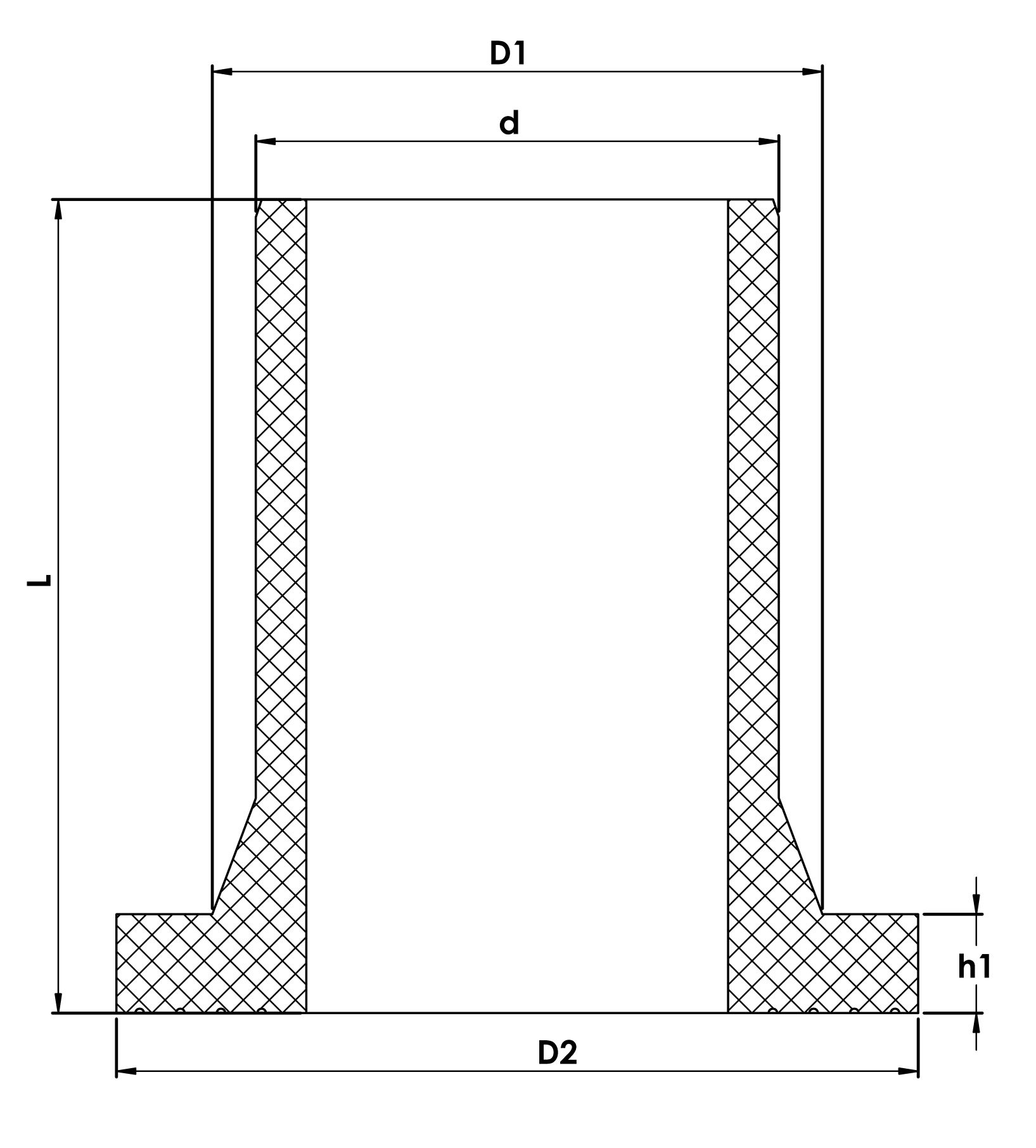

| d | KOD | Kg. | L (mm) | D1 (mm) | D2 (mm) | h1 (mm) | KUTU ÖLÇÜSÜ | ADET/KUTU |
| 63 | 01711710000000630000 | 0,20 | 95 | 75 | 102 | 14 | 60*40*30 | 60 |
| 75 | 01711710000000750000 | 0,32 | 125 | 89 | 122 | 16 | 60*40*30 | 40 |
| 90 | 01711710000000900000 | 0,38 | 140 | 105 | 138 | 17 | 60*40*30 | 30 |
| 110 | 01711710000001100000 | 0,50 | 160 | 125 | 158 | 18 | 60*40*30 | 24 |
| 125 | 01711710000001250000 | 0,75 | 170 | 132 | 158 | 18 | 60*40*45 | 24 |
| 140 | 01711710000001400000 | 0,95 | 200 | 155 | 188 | 18 | 60*40*45 | 12 |
| 160 | 01711710000001600000 | 1,38 | 200 | 175 | 212 | 18 | 60*40*45 | 12 |
| 180 | 01711710000001800000 | 1,51 | 200 | 185 | 212 | 20 | 60*40*45 | 12 |
| 200 | 01711710000002000000 | 2,47 | 200 | 232 | 268 | 24 | 60*40*45 | 6 |
| 225 | 01711710000002250000 | 2,51 | 200 | 235 | 268 | 24 | 60*40*45 | 6 |
| 250 | 01711710000002500000 | 3,94 | 204 | 285 | 320 | 25 | 60*40*30 | 2 |
| 280 | 01711710000002800000 | 4,38 | 204 | 291 | 320 | 25 | 60*40*30 | 2 |
| 315 | 01711710000003150000 | 6,00 | 225 | 335 | 370 | 25 | 60*40*45 | 2 |
| 355 | 01711710000003550000 | 8,50 | 244 | 373 | 430 | 30 | 60*40*45 | 2 |
| 400 | 01711710000004000000 | 11,20 | 270 | 427 | 482 | 33 | 60*40*45 | 1 |
| 450-A | 0171171000000450000A | 16,50 | 315 | 514 | 585 | 46 | 60*60*33 | 1 |
| 450-B | 0171171000000450000B | 16,50 | 315 | 458 | 530 | 46 | 60*60*33 | 1 |
| 500 | 01711710000005000000 | 22,60 | 322 | 530 | 585 | 46 | * | |
| 560 | 01711710000005600000 | 31,00 | 355 | 615 | 685 | 50 | * | |
| 630 | 01711710000006300000 | 35,40 | 355 | 642 | 685 | 50 | * | |
| 710 | 01711710000007100000 | 43,00 | 390 | 737 | 800 | 60 | * | |
| 800 | 01711710000008000000 | 48,40 | 390 | 840 | 905 | 60 | * | |
| 900 | 01711710000009000000 | 74,00 | 455 | 944 | 1005 | 60 | * | |
| 1000 | 01711710000001000000 | 105,00 | 509 | 1047 | 1110 | 60 | * | |
| 1200 | 01711710000001200000 | 157,60 | 575 | 1245 | 1330 | 60 | * | |
| 1400 | 01711710000001400000 | 201,00 | – | – | – | – | * | |
| 1600 | 01711710000001600000 | 282,20 | – | – | – | – | * | |
| 2000 | 01711710000002000000 | 320,40 | – | – | – | – | * |
(*) : Karton kutu kullanılmaz. Sadece Euro paletler kullanılmaktadır.
