ELEKTROFÜZYON SEMER SDR11 PE100-RC
METRİK ÖLÇÜLÜ ÜRÜNLER
EF ÜRÜNLER
GAZ: 10 BAR SU: 16 BAR

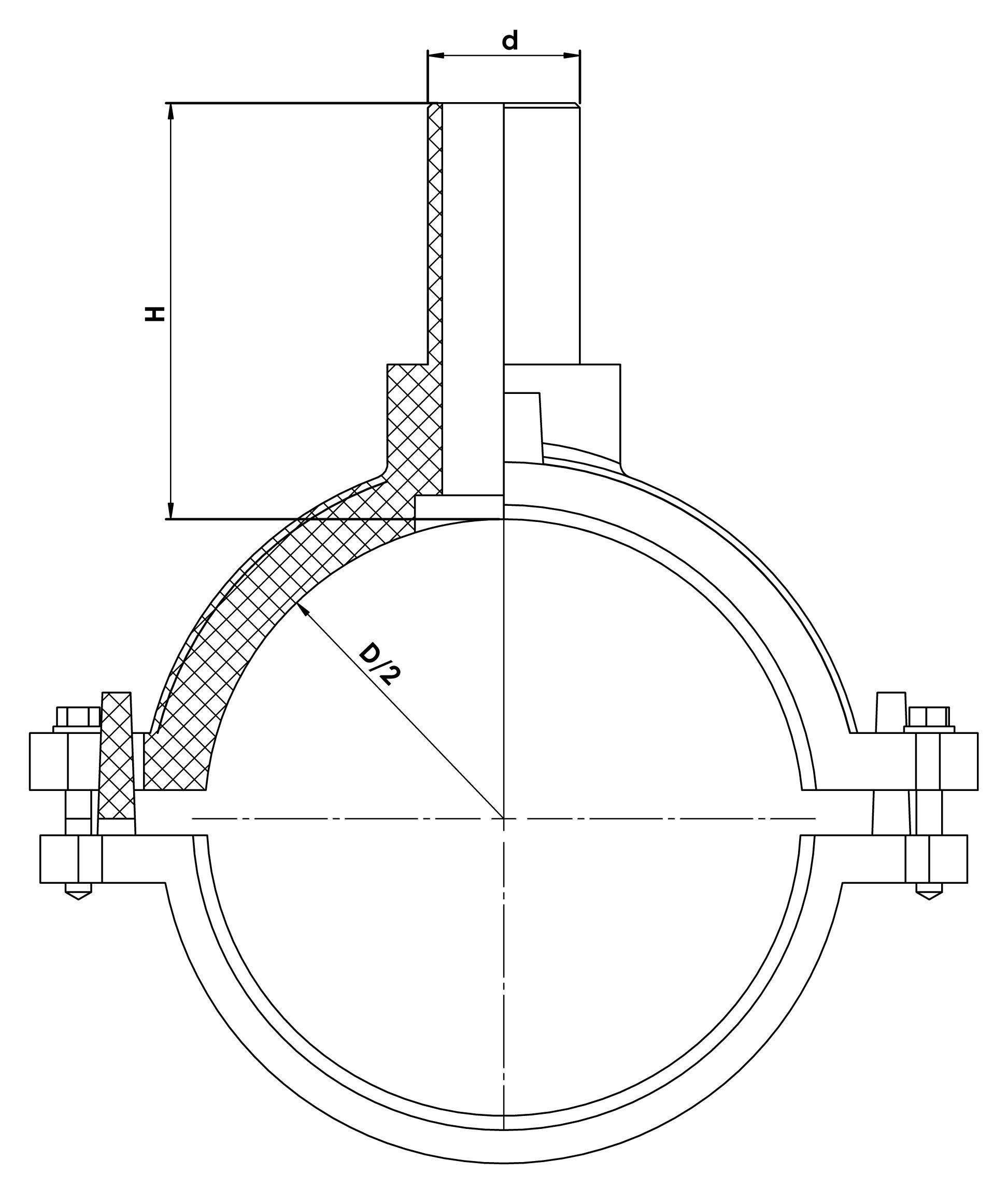

TİP A

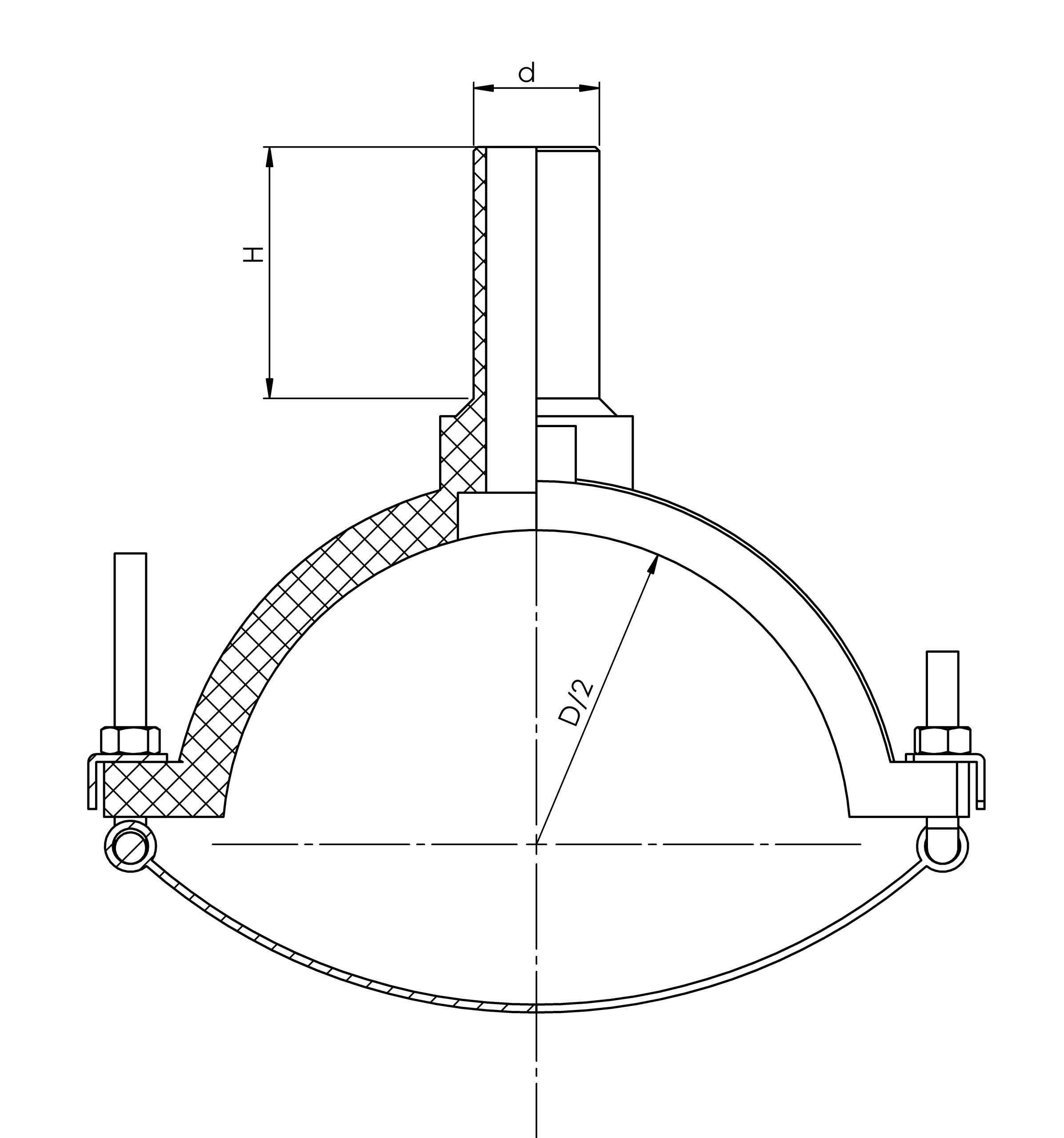

TİP B

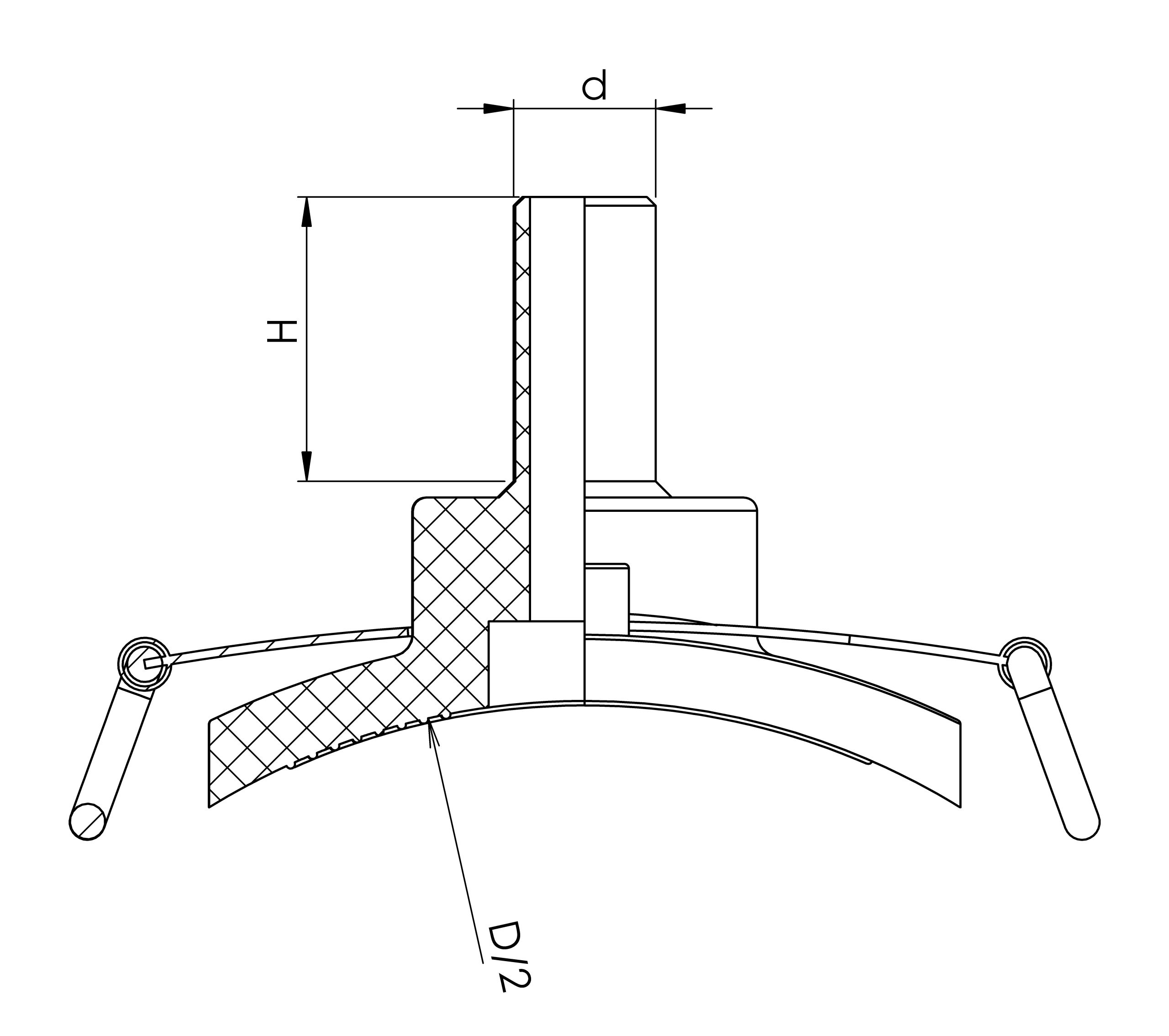

TİP C
| D*d | KOD | Kg. | H (mm) | KUTU ÖLÇÜSÜ | ADET/KUTU | TİP |
| 40*20 | 05711100000000400020 | 0,18 | 75 | 40*30*30 | 35 | A |
| 40*25 | 05711100000000400025 | 0,19 | 75 | 40*30*30 | 35 | A |
| 40*32 | 05711100000000400032 | 0,20 | 75 | 40*30*30 | 35 | A |
| 50*20 | 05711100000000500020 | 0,34 | 77 | 40*30*30 | 24 | A |
| 50*25 | 05711100000000500025 | 0,35 | 77 | 30*40*30 | 24 | A |
| 50*32 | 05711100000000500032 | 0,38 | 77 | 30*40*30 | 24 | A |
| 50*40 | 05711100000000500040 | 0,39 | 77 | 40*30*30 | 20 | A |
| 63*20 | 05711100000000630020 | 0,35 | 77 | 40*30*30 | 20 | A |
| 63*25 | 05711100000000630025 | 0,36 | 77 | 40*30*30 | 20 | A |
| 63*32 | 05711100000000630032 | 0,39 | 77 | 40*30*30 | 20 | A |
| 63*40 | 05711100000000630040 | 0,40 | 77 | 30*40*30 | 20 | A |
| 63*50 | 05711100000000630050 | 0,75 | 125 | 30*40*30 | 20 | A |
| 63*63 | 05711100000000630063 | 0,80 | 125 | 40*30*30 | 7 | A |
| 75*20 | 05711100000000750020 | 0,36 | 77 | 40*30*30 | 20 | A |
| 75*25 | 05711100000000750025 | 0,37 | 77 | 40*30*30 | 20 | A |
| 75*32 | 05711100000000750032 | 0,39 | 77 | 40*30*30 | 20 | A |
| 75*40 | 05711100000000750040 | 0,41 | 77 | 30*40*30 | 20 | A |
| 75*50 | 05711100000000750050 | 0,45 | 125 | 40*30*30 | 15 | A |
| 75*63 | 05711100000000750063 | 0,49 | 125 | 40*30*30 | 15 | A |
| 90*20 | 05711100000000900020 | 0,66 | 95 | 60*40*30 | 18 | A |
| 90*25 | 05711100000000900025 | 0,68 | 95 | 60*40*30 | 18 | A |
| 90*32 | 05711100000000900032 | 0,69 | 95 | 60*40*30 | 18 | A |
| 90*40 | 05711100000000900040 | 0,70 | 95 | 60*40*30 | 18 | A |
| 90*50 | 05711100000000900050 | 0,71 | 135 | 60*40*30 | 18 | B |
| 90*63 | 05711100000000900063 | 0,72 | 135 | 60*40*30 | 12 | B |
| 110*20 | 05711100000001100020 | 0,73 | 95 | 60*40*30 | 15 | A |
| 110*25 | 05711100000001100025 | 0,74 | 95 | 60*40*30 | 15 | A |
| 110*32 | 05711100000001100032 | 0,75 | 95 | 60*40*30 | 15 | A |
| 110*40 | 05711100000001100040 | 0,76 | 95 | 60*40*30 | 15 | A |
| 110*50 | 05711100000001100050 | 0,77 | 110 | 60*40*30 | 15 | A |
| 110*63 | 05711100000001100063 | 0,78 | 110 | 60*40*30 | 12 | A |
| 125*20 | 05711100000001250020 | 0,75 | 95 | 60*40*30 | 12 | A |
| 125*25 | 05711100000001250025 | 0,75 | 95 | 60*40*30 | 12 | A |
| 125*32 | 05711100000001250032 | 0,76 | 95 | 60*40*30 | 12 | A |
| 125*40 | 05711100000001250040 | 0,78 | 95 | 60*40*30 | 12 | A |
| 125*50 | 05711100000001250050 | 0,79 | 110 | 60*40*30 | 12 | A |
| 125*63 | 05711100000001250063 | 0,80 | 110 | 60*40*30 | 12 | A |
| 140*20 | 05711100000001400020 | 0,92 | 95 | 60*40*30 | 10 | B |
| 140*25 | 05711100000001400025 | 0,93 | 95 | 60*40*30 | 10 | B |
| 140*32 | 05711100000001400032 | 0,93 | 95 | 60*40*30 | 10 | B |
| 140*40 | 05711100000001400040 | 0,94 | 95 | 60*40*30 | 10 | B |
| 140*50 | 05711100000001400050 | 0,95 | 110 | 60*40*30 | 10 | B |
| 140*63 | 05711100000001400063 | 0,96 | 110 | 60*40*30 | 10 | B |
| 160*20 | 05711100000001600020 | 0,93 | 95 | 60*40*30 | 12 | B |
| 160*25 | 05711100000001600025 | 0,94 | 95 | 60*40*30 | 12 | B |
| 160*32 | 05711100000001600032 | 0,95 | 95 | 60*40*30 | 15 | B |
| 160*40 | 05711100000001600040 | 0,96 | 95 | 60*40*30 | 12 | B |
| 160*50 | 05711100000001600050 | 0,99 | 110 | 60*40*30 | 12 | B |
| 160*63 | 05711100000001600063 | 1,00 | 110 | 60*40*30 | 12 | B |
| 180*20 | 05711100000001800020 | 0,93 | 95 | 60*40*30 | 12 | B |
| 180*25 | 05711100000001800025 | 0,95 | 95 | 60*40*30 | 12 | B |
| 180*32 | 05711100000001800032 | 0,96 | 95 | 60*40*30 | 12 | B |
| 180*40 | 05711100000001800040 | 0,97 | 95 | 60*40*30 | 12 | B |
| 180*50 | 05711100000001800050 | 1,00 | 110 | 60*40*30 | 12 | B |
| 180*63 | 05711100000001800063 | 1,01 | 110 | 60*40*30 | 12 | B |
| 200*20 | 05711100000002000020 | 0,89 | 95 | 60*40*30 | 12 | B |
| 200*25 | 05711100000002000025 | 0,90 | 95 | 60*40*30 | 12 | B |
| 200*32 | 05711100000002000032 | 0,91 | 95 | 60*40*30 | 15 | B |
| 200*40 | 05711100000002000040 | 0,92 | 95 | 60*40*30 | 12 | B |
| 200*50 | 05711100000002000050 | 0,93 | 110 | 60*40*30 | 12 | B |
| 200*63 | 05711100000002000063 | 0,94 | 110 | 60*40*30 | 12 | B |
| 225*20 | 05711100000002250020 | 0,90 | 95 | 60*40*30 | 12 | B |
| 225*25 | 05711100000002250025 | 0,91 | 95 | 60*40*30 | 12 | B |
| 225*32 | 05711100000002250032 | 0,92 | 95 | 60*40*30 | 12 | B |
| 225*40 | 05711100000002250040 | 0,93 | 95 | 60*40*30 | 12 | B |
| 225*50 | 05711100000002250050 | 0,94 | 110 | 60*40*30 | 12 | B |
| 225*63 | 05711100000002250063 | 0,95 | 110 | 60*40*30 | 12 | B |
| 250*20 | 05711100000002500020 | 0,54 | 100 | 60*40*30 | 20 | C |
| 250*25 | 05711100000002500025 | 0,50 | 100 | 60*40*30 | 20 | C |
| 250*32 | 05711100000002500032 | 0,51 | 130 | 60*40*30 | 20 | C |
| 250*40 | 05711100000002500040 | 0,52 | 110 | 60*40*30 | 20 | C |
| 250*50 | 05711100000002500050 | 0,58 | 130 | 60*40*30 | 20 | C |
| 250*63 | 05711100000002500063 | 0,58 | 125 | 60*40*30 | 20 | C |
| 280*20 | 05711100000002800020 | 0,49 | 100 | 60*40*30 | 20 | C |
| 280*25 | 05711100000002800025 | 0,50 | 100 | 60*40*30 | 20 | C |
| 280*32 | 05711100000002800032 | 0,51 | 130 | 60*40*30 | 20 | C |
| 280*40 | 05711100000002800040 | 0,52 | 110 | 60*40*30 | 20 | C |
| 280*50 | 05711100000002800050 | 0,58 | 130 | 60*40*30 | 20 | C |
| 280*63 | 05711100000002800063 | 0,58 | 125 | 60*40*30 | 20 | C |
| 315*20 | 05711100000003150020 | 0,51 | 110 | 60*40*30 | 20 | C |
| 315*25 | 05711100000003150025 | 0,47 | 110 | 60*40*30 | 20 | C |
| 315*32 | 05711100000003150032 | 0,48 | 140 | 60*40*30 | 20 | C |
| 315*40 | 05711100000003150040 | 0,49 | 115 | 60*40*30 | 20 | C |
| 315*50 | 05711100000003150050 | 0,55 | 140 | 60*40*30 | 20 | C |
| 315*63 | 05711100000003150063 | 0,55 | 130 | 60*40*30 | 20 | C |
| 355*20 | 05711100000003550020 | 0,46 | 110 | 60*40*30 | 20 | C |
| 355*25 | 05711100000003550025 | 0,47 | 110 | 60*40*30 | 20 | C |
| 355*32 | 05711100000003550032 | 0,48 | 140 | 60*40*30 | 20 | C |
| 355*40 | 05711100000003550040 | 0,49 | 115 | 60*40*30 | 20 | C |
| 355*50 | 05711100000003550050 | 0,55 | 140 | 60*40*30 | 20 | C |
| 355*63 | 05711100000003550063 | 0,55 | 130 | 60*40*30 | 20 | C |
| 400*20 | 05711100000004000020 | 0,48 | 110 | 60*40*30 | 20 | C |
| 400*25 | 05711100000004000025 | 0,44 | 110 | 60*40*30 | 20 | C |
| 400*32 | 05711100000004000032 | 0,45 | 140 | 60*40*30 | 20 | C |
| 400*40 | 05711100000004000040 | 0,46 | 115 | 60*40*30 | 20 | C |
| 400*50 | 05711100000004000050 | 0,52 | 140 | 60*40*30 | 20 | C |
| 400*63 | 05711100000004000063 | 0,52 | 130 | 60*40*30 | 20 | C |
| 450*20 | 05711100000004500020 | 0,43 | 110 | 60*40*30 | 20 | C |
| 450*25 | 05711100000004500025 | 0,44 | 110 | 60*40*30 | 20 | C |
| 450*32 | 05711100000004500032 | 0,45 | 140 | 60*40*30 | 20 | C |
| 450*40 | 05711100000004500040 | 0,46 | 115 | 60*40*30 | 20 | C |
| 450*50 | 05711100000004500050 | 0,52 | 140 | 60*40*30 | 20 | C |
| 450*63 | 05711100000004500063 | 0,52 | 130 | 60*40*30 | 20 | C |
