ELEKTROFÜZYON İÇ KAPAKLI VANALI SERVİS TE SDR11 PE100-RC
METRİK ÖLÇÜLÜ ÜRÜNLER
EF ÜRÜNLER
GAZ: 10 BAR SU: 16 BAR

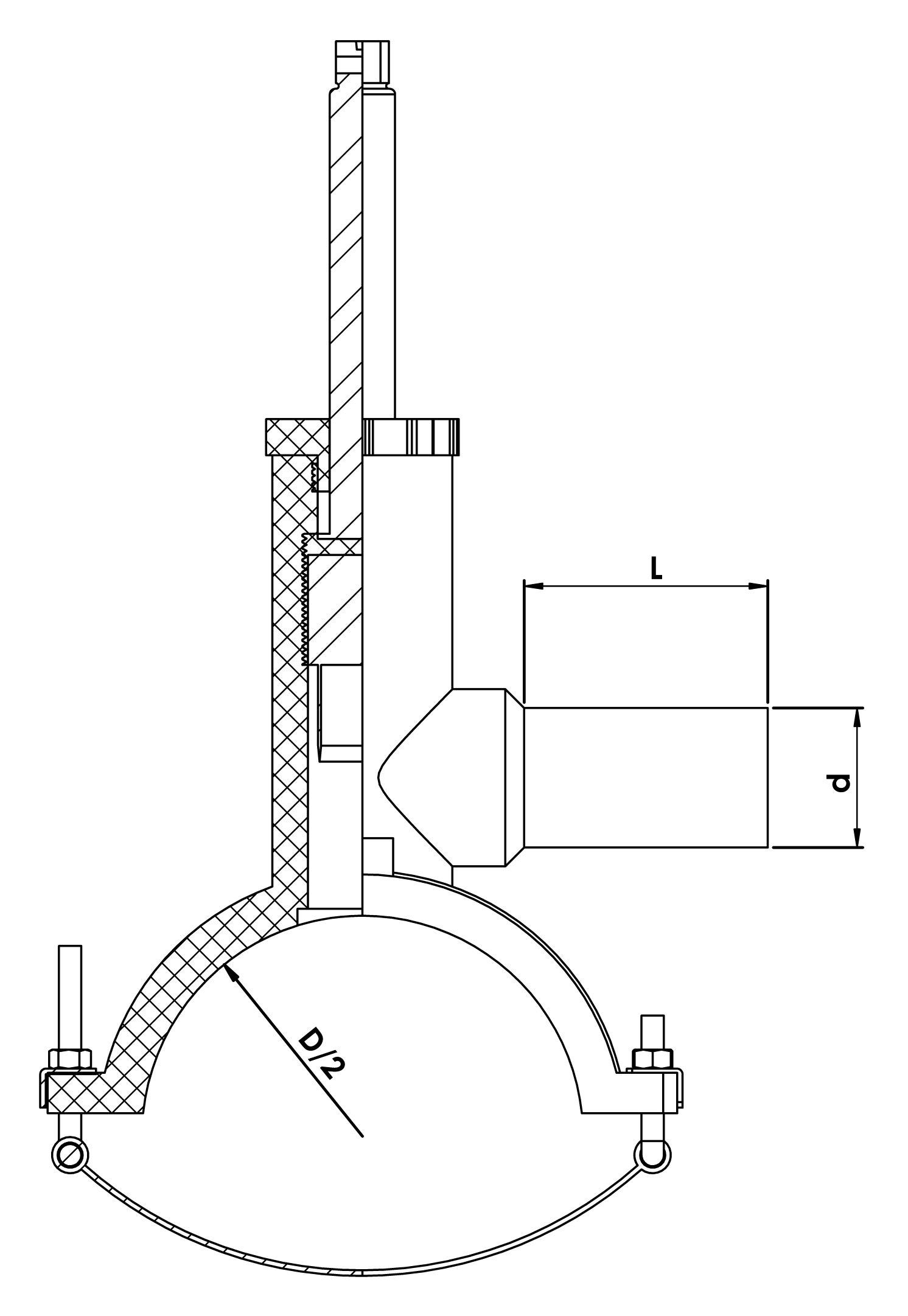

| D*d | KOD | Kg. | L (mm) | KUTU ÖLÇÜSÜ | ADET/KUTU |
| 63*20 | 05211100000000630020 | 0,75 | 52 | 30*40*30 | 10 |
| 63*25 | 05211100000000630025 | 0,75 | 54 | 30*40*30 | 10 |
| 63*32 | 05211100000000630032 | 0,80 | 85 | 30*40*30 | 10 |
| 63*40 | 05211100000000630040 | 0,80 | 90 | 30*40*30 | 10 |
| 75*20 | 05211100000000750020 | 0,80 | 52 | 30*40*30 | 10 |
| 75*25 | 05211100000000750025 | 0,80 | 54 | 30*40*30 | 10 |
| 75*32 | 05211100000000750032 | 0,85 | 85 | 30*40*30 | 10 |
| 75*40 | 05211100000000750040 | 0,85 | 90 | 30*40*30 | 10 |
| 90*20 | 05211100000000900020 | 0,90 | 52 | 60*40*30 | 8 |
| 90*25 | 05211100000000900025 | 0,90 | 54 | 60*40*30 | 8 |
| 90*32 | 05211100000000900032 | 0,95 | 85 | 60*40*30 | 8 |
| 90*40 | 05211100000000900040 | 0,95 | 90 | 60*40*30 | 8 |
| 110*20 | 05211100000001100020 | 1,05 | 52 | 60*40*30 | 8 |
| 110*25 | 05211100000001100025 | 1,05 | 54 | 60*40*30 | 8 |
| 110*32 | 05211100000001100032 | 1,10 | 85 | 60*40*30 | 8 |
| 110*40 | 05211100000001100040 | 1,10 | 90 | 60*40*30 | 8 |
| 125*20 | 05211100000001250020 | 1,05 | 52 | 60*40*30 | 8 |
| 125*25 | 05211100000001250025 | 1,05 | 54 | 60*40*30 | 8 |
| 125*32 | 05211100000001250032 | 1,10 | 85 | 60*40*30 | 8 |
| 125*40 | 05211100000001250040 | 1,10 | 90 | 60*40*30 | 8 |
| 140*20 | 05211100000001400020 | 1,10 | 52 | 60*40*30 | 8 |
| 140*25 | 05211100000001400025 | 1,10 | 54 | 60*40*30 | 8 |
| 140*32 | 05211100000001400032 | 1,15 | 85 | 60*40*30 | 8 |
| 140*40 | 05211100000001400040 | 1,15 | 90 | 60*40*30 | 8 |
| 160*20 | 05211100000001600020 | 1,10 | 52 | 60*40*30 | 8 |
| 160*25 | 05211100000001600025 | 1,10 | 54 | 60*40*30 | 8 |
| 160*32 | 05211100000001600032 | 1,15 | 85 | 60*40*30 | 8 |
| 160*40 | 05211100000001600040 | 1,15 | 90 | 60*40*30 | 8 |
| 180*20 | 05211100000001800020 | 1,10 | 52 | 60*40*30 | 8 |
| 180*25 | 05211100000001800025 | 1,10 | 54 | 60*40*30 | 8 |
| 180*32 | 05211100000001800032 | 1,15 | 85 | 60*40*30 | 8 |
| 180*40 | 05211100000001800040 | 1,15 | 90 | 60*40*30 | 8 |
| 200*20 | 05211100000002000020 | 1,10 | 52 | 60*40*30 | 8 |
| 200*25 | 05211100000002000025 | 1,10 | 54 | 60*40*30 | 8 |
| 200*32 | 05211100000002000032 | 1,15 | 85 | 60*40*30 | 8 |
| 200*40 | 05211100000002000040 | 1,15 | 90 | 60*40*30 | 8 |
| 225*20 | 05211100000002250020 | 1,10 | 52 | 60*40*30 | 8 |
| 225*25 | 05211100000002250025 | 1,10 | 54 | 60*40*30 | 8 |
| 225*32 | 05211100000002250032 | 1,15 | 85 | 60*40*30 | 8 |
| 225*40 | 05211100000002250040 | 1,15 | 90 | 60*40*30 | 8 |
